INDUSTRIAL CONTROLLERS AND I/O MODULES

PD600 and PD800 Series

Download price list in PDF format

COPP enabled modules

COPP enabled modules are process controllers, I/O-modules and sensors, which are programmable in COPP by means of the tools in the VIGO6 Integrated Development Environment.

Additional info about COPP enabled modules, including features and design, building clusters, network types, wiring, dimensions, etc. can be found on this page:
Introduction to COPP enabled modules

PD688
7" Colour Graphics Display with capacitive touchscreen, Dual 100 Mbit Ethernet, 2 individual P-NET via RS485, 2 digital I/O’s •...
PD802 COPP DPI
Distributed Process Intelligence type, P-NET via Light-Link, RS-485, USB Interface, Dual 100 Mbit Ethernet • Process Automation Controller • Programmable...
PD803 COPP DPI GSM GPS
Distributed Process Intelligence type, P-NET via Light-Link, RS-485, Dual 100 Mbit Ethernet, USB Interface, GSM, GPS.   • Process Automation...
PD804 COPP DPI 4G & GPS
Distributed Process Intelligence type, P-NET via Light-Link, RS-485, Dual 100 Mbit Ethernet, USB Interface, 4G LTE, GPS.   • Process...
PD820 15 CH. DIGITAL I/O
15 ch. Digital I/O, Push-pull output, Built-in input and output functions, P-NET via Light-Link, Programmable in COPP • Digital Source or Sink...
PD821 15 CH. DIGITAL IN
15 ch. Digital in, Digital inputs for nominal 24 volt signals, P-NET via Light-Link, Programmable in COPP • Digital inputs for nominal...
PD840 15 CH. ANALOGUE IN
15 ch. Analogue in, Analogue inputs for 4-20 mA signals, P-NET via Light-Link, Programmable in COPP • Analogue inputs for 4-20 mA...
PD850 MULTIFUNCTION I/O
Multifunction I/O, Digital Source I/Os for nominal 24 volt, Analogue I/Os for 4-20 mA signals, P-NET via Light-Link, Programmable in COPP • Digital...
PD870 MOTOR CONTROLLER
Be aware that the Motor Controller is a combination of the PD870 COPP controller and the BM102 high power base...
PD610
Communication Module, COPP Gateway, P-NET, RS-485, CAN bus interface, Ethernet,   P-NET via Light-Link • P-NET-RS485 or CAN bus interface •...
PD630
• Ratiometric bridge sensor input with sensor supply • Six wire connection with shield for sensors • Fits both low...
PD644 Analogue I/O – HART
Analogue I/O module, 4 analogue input 4-20 mA, HART and 2 analogue channels 4-20 mA I/O, P-NET via Light-Link •...
PD645
• Analogue input/output for 0-10 V signals • Programmable in COPP • P-NET via Light-Link • Overload/underload protection and alarming...
PD3221B
• 4 Digital Source, Sink or push-pull I/O´s • Load current measurement • 2 Digital Inputs • 1 Analog Current...
PD940 DIPSTICK
Level, conductivity and temperature transmitter, Analogue current output: 4-20 mA, Digital I/O, P-NET via RS485 • Compact sanitary design - designed...
PD947
GPS Navigation Receiver, Designed for rugged operating conditions, waterproof to IP67, P-NET via RS485 or Ethernet • High sensitivity GPS receiver for...
PD3122
• 16 Digital Source, Sink or Push-Pull I/O´s • Load current measurement • P-NET via RS485 cable • Built-in input...
PD955 COPP DEVICE ON PC
PD955 COPP device on PC

NON-COPP enabled modules

NON-COPP enabled modules are process controllers and I/O-modules which do not offer support for programming in COPP. However, they they can be fully integrated in projects with modules supporting COPP. Some of these modules may be programmed using the Process-Pascal programming language.

Additional info about NON-COPP enabled modules can be found on this page: Introduction to NON-COPP enabled modules

PD528
Tank Gauging Module, 5-ch.: Pressure, Analogue output 0/4-20 mA, Digital I/Os, Tank Gauging.   • Sensor type: Differential Pressure •...
PD600B
Distributed Process Intelligence type, P-NET via Light Link and RS-485 Interface. • Real time clock with battery backup. • 64 ...
PD601
Distributed Process Intelligence type, PD 601, P-NET via Light Link, RS-232 Interface • Real time clock with battery backup. •...
PD602B
Distributed Process Intelligence, P-NET via Light-Link and 10/100 Mbit/s Ethernet LAN Interface. • Real time clock with battery backup. •...
PD620
• Individually Configurable Digital I/Os for nominal 24 volts signals and 1 amp (2 Amp) loads. • Built in input...
PD621
• Individually Configurable Digital I/Os for nominal 24 volts signals and 1 amp (2 Amp) loads. • Built in input...
PD622
• 6 Individually Configurable digital Inputs for nominal 24 volts signals. • Built in input functions. • Autonomous counting to...
PD640
Analogue Interface Module, 4 analogue channels, configurable for either 0-20 mA or 4-20 mA signal types, • Analogue current I/O module...
PD641
Analogue Interface Module,  3-ch. input each of which can be configured for either Pt100 or Pt1000 sensor types • Temperature input...
PD642
Analogue Interface Module, 4-ch. individual inputs (voltage 0-100 mV or  thermocouple temperature sensor), P-NET via Light-Link • 0-100 mV or thermocouple...
PD643
Analogue Interface Modul, 3-ch. voltage/temperature (0-100 mV/Pt100/thermocouple) • Temperature inputs Pt100 / pt1000 / thermocouple and 0-100 mV • 0-100 mv /...
PD661
Simple P-NET Interface, RS-485 to Light-Link converter. • Its main purpose is to provide a transparent link between standard RS485...
PD662
Redundancy P-NET Interface, RS-485 to Light-Link converter. • Provides a redundant and transparent link between optical Light-Link and a duplicated...
PD663
Simple P-NET Interface Triple Speed, RS-485 to Light-Link converter • Provides a transparent link between standard RS485 P-NET and the...
PD667
Profibus DP-V0 Essential Features Master • RS485 interface for Profibus • Light-Link interface for P-NET • Advanced internal self testing • Wide...
PD681
• Sealed Construction • 28 Key Membrane click-switch Keyboard • Backlit Graphics LCD Display • User definable overlay • Two...
PD690
• Power supply input transient voltage protection • Wrong polarity protection • Output short-circuit protection • LED On / Error...
PD951 RFID reader
PD 951 RFID Reader, general purpose LF Dual Band RFID reader. • High performance Dual band RFID Reader 125 kHz...
PD3950
PD 3950 PC P-NET interface, USB interface • P-NET Fieldbus communication interface. • P-NET RS485, multi-master P-NET interface. • Galvanically...
PD990
PD 990 4-WIRE P-NET Conditioner • Termination of a 4-WIRE P-NET bus. • Connection of a traditional P-NET module to...
PD981 KeyLED (OEM)
P‑NET slave module, A custom designed front panel mounted keyboard, Ope­rator input and LED module for other P-NET devices.
P-NET LAN to P-NET RS485 interface
P-NET LAN to P-NET RS485 interface unit including: 1 pcs. PD 602S, mounted on BM 016 1 pcs. PD 661...
Unit for galvanic isolation of P-NET RS485
Unit for galvanic isolation of P-NET RS485 including: 2 pcs. PD 661 SPI, mounted on BM 010 1 pcs. bottom...

BASE MODULES

Products in this category are Base Modules for both the M36- and the M100 Series.

BM101 BASE MODULE – WITH 4 RELAY (SPDT)
BM 101 Base Module, screw terminals
BM103 BASE MODULE
Base Module, BM 103, screw terminals.
BM104 BASE MODULE
Base Module, BM 104, screw terminals.
BM105 BASE MODULE
Base Module BM 105, 6 relays, screw terminals.
BM002 BASE MODULE
BM 002 Base Module, screw terminals
BM003 BASE MODULE
BM 003 Base Module, RJ45
BM004 BASE MODULE
BM 004 Base Module, 2 relays, screw terminals
BM005 BASE MODULE
BM 005 Base Module, screw terminals
BM006 BASE MODULE
BM 006 Base Module, screw terminals
BM008 BASE MODULE
BM 008 Base Module, 4 relays, screw terminals
BM010 BASE MODULE
BM 010 Base module, screw terminals
BM011 BASE MODULE
BM 011 Base module, screw terminals
BM012 BASE MODULE
BM 012 Base module, screw terminals
BM013 BASE MODULE
BM 013 Base module, screw terminals
BM014 BASE MODULE
BM 014 Base module, screw terminals
BM016 BASE MODULE
BM 016 Base Module, RJ45
BM018 BASE MODULE
BM 018 Base Module, screw terminals
BM020 BASE MODULE
BM 020 Base Module, screw terminals
BM021 BASE MODULE
BM 021 Base Module, screw terminals
BM022 BASE MODULE
BM 022 Base Module, screw terminals

ACCESSORIES

Products in this category are accessories for use with the products above.

Fibre optics kit

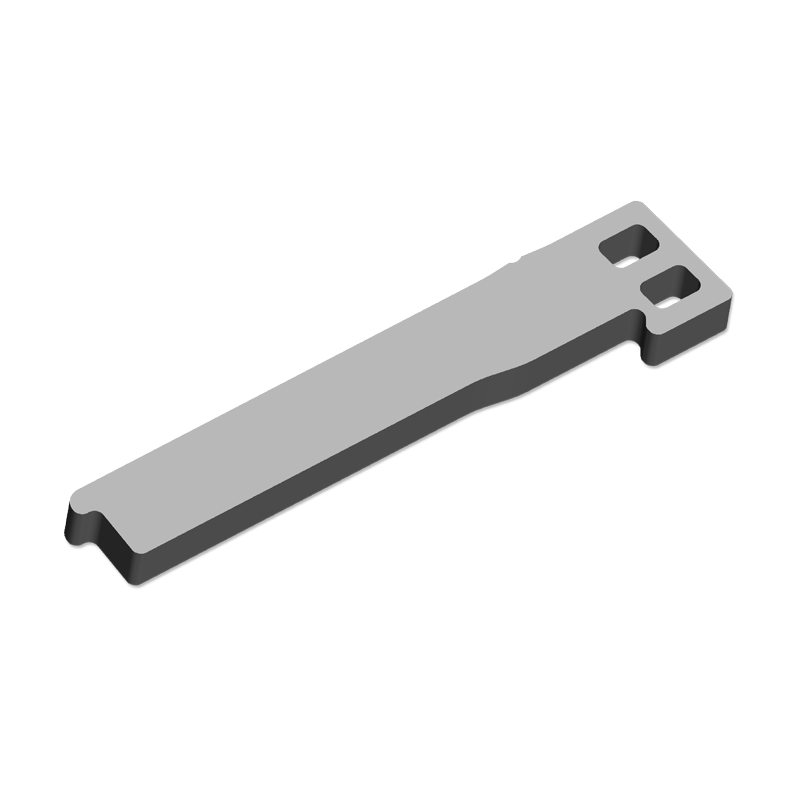

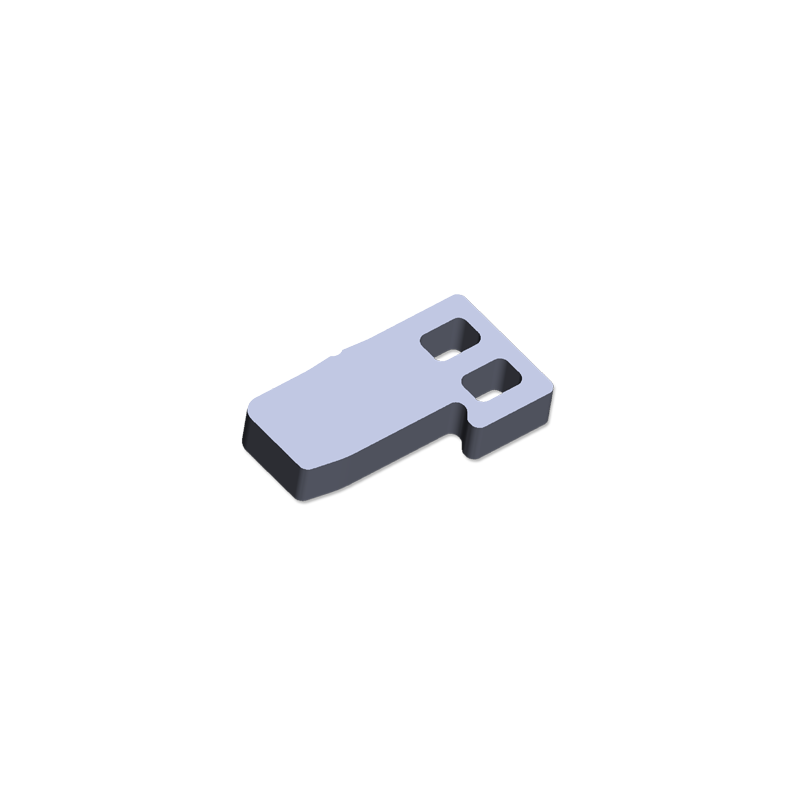

Fibre optics kit (plastic optical fibre, left/right holding wedges)
GPS and GSM antenna cable kit for PD803/PD804
GPS antenna and cable kit for PD 803 and 804. Cable length 10 m

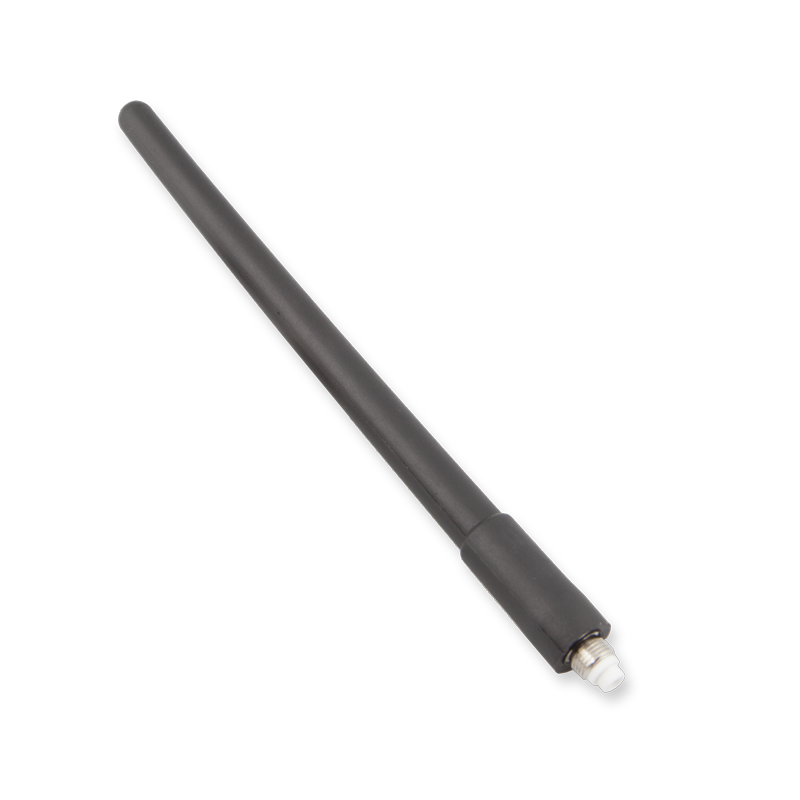

GSM and GPRS antenna for PD803/PD804 DPI
GSM and GPRS antenna 4G(LTE), 698-960 / 1710-2690MHz, SMA-male

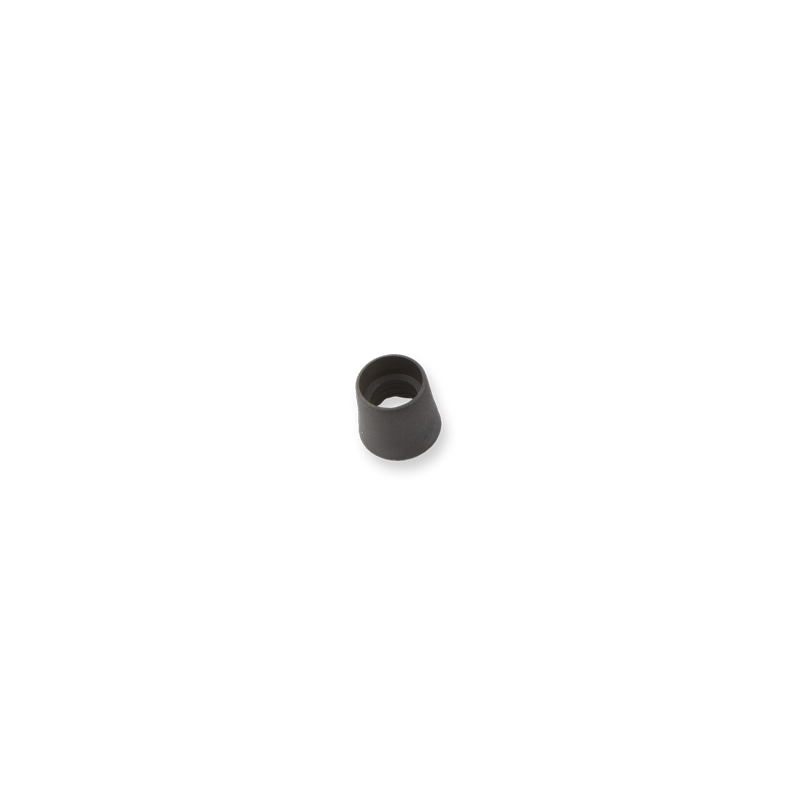

Screw nut cover for GSM aerial
Screw nut cover for GSM aerial
Antenna cable, FME/SMB 0,6 meter
Antenna cable, FME/SMB 0,6 meter
Battery for PD60x DPI
Battery kit for PD 60x (battery and holder)
NFC Access Card, PROCES-DATA
NFC Access Card, PROCES-DATA NTAG 216 ISO
NFC Access Card (White)
NTAG 216 ISO Card
5 pcs. NFC Access Card, PROCES-DATA
5 pcs. NFC Access Card, PROCES-DATA NTAG 216 ISO
5 pcs. NFC Access Card (White)
NTAG 216 ISO Card
Stand for PD688 Display
Set of stands for PD688 Display
Epson TM-T70II
Epson Printer. Paper out in front. Model: Epson TM-T70II
Epson TM-T88VII
Epson Printer. Paper out on top. Model: Epson TM-T88VII

SPAREPARTS

Modules listed in this category are process controllers and I/O-modules, and accessories, which can be delivered as spareparts for existing control systems (not recommended for use in new projects).

PD3120 Digital I/O interface 16 ch
This module must only be used to replace defective modules in an existing installation.
PD3240 Analog Interface Module AIM
This module must only be used to replace defective modules in an existing installation.
PD3250 Analog Interface Module, AIM, voltage measurement
This module must only be used to replace defective modules in an existing installation.
PD5090D RAM extension card, 2 MB RAM 512 kB flash
PD5090D/2MB RAM extension Board for PD5000 controller.
PD626 – Stepper motor controller and driver
The PD 626 is an integrated controller and driver for stepper motors. It can directly drive a unipolar stepper motor....
Gasket for PD688 Display
Gasket for PD688 Display (spare part)
Gasket for PD4000 Display and PD681 Display
Gasket for PD4000 Display and PD681 Display (spare part)
