PD840

15 ch. Analogue in, Analogue inputs for 4-20 mA signals, P-NET via Light-Link, Programmable in COPP

• Analogue inputs for 4-20 mA signals
• Programmable in COPP
• P-NET via Light-Link
• Overload/Underload protection and Alarming
• Advanced internal self testing
• LED for power On and Error indication
• Wide Power Supply range
• Wide Temperature range
• Low Power Consumption

Loading...

ORDERING

Picture Part. No. Name Price Quantity
900008 DKK 2,600.00
900103 DKK 3,000.00
900018 DKK 400.00
701117 DKK 10.00
701139 DKK 15.00

PRODUCT DESCRIPTION

  • Analogue inputs for 4-20 mA signals
  • Programmable in COPP
  • P-NET via Light-Link
  • Overload/Underload protection and Alarming
  • Advanced internal self testing
  • LED for power On and Error indication
  • Wide Power Supply range
  • Wide Temperature range
  • Low Power Consumption



APPLICATION

PD 840 is a device in the M100 series with analogue channels. The device offers 15 channels as interface for various types of transmitters with signal output in the range 4-20 mA.

All channels are protected against overload and short-circuit to both negative and positive supply voltage and notification can be enabled on any disconnection or process failure.

The device is programmable in COPP, which means that a part of, or complete automation application can be built and downloaded by the user.
The program can make use of ready-made components to control and monitor any process or machine application, both locally in the device but also via the network interacting with other devices.

PD 840 is used with the BM 104 base module.

The device can be fixed to the base module by means of a screw.

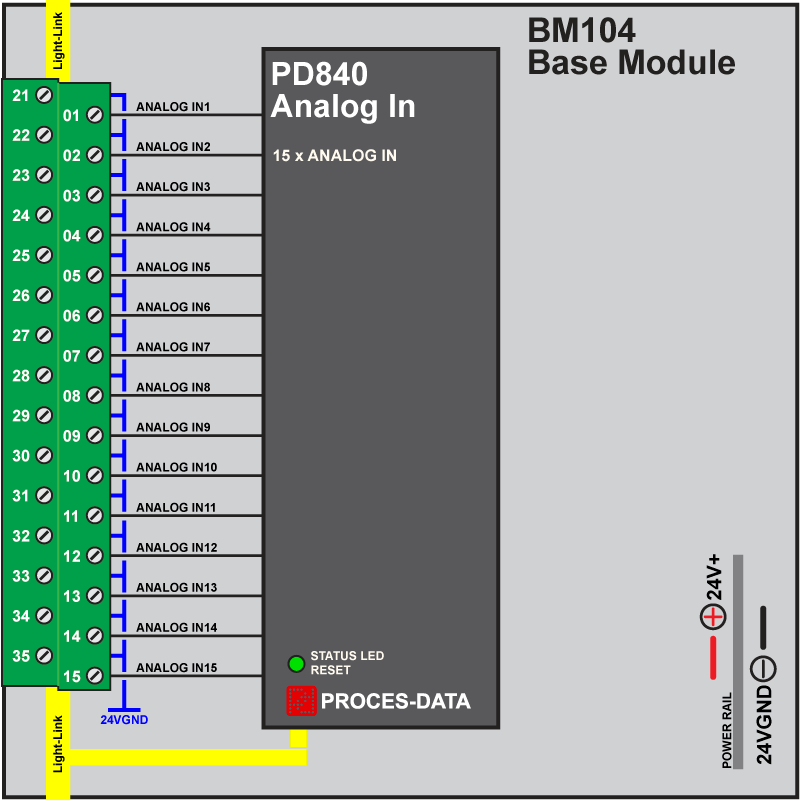

BASE MODULES SCHEMATICS

BM104
