PD340 Series

High precision Flow Transmitter for sanitary applications

The PD340 Flow Transmitter from PROCES-DATA is an electromagnetic precision flowmeter for the volumetric measurement of liquids that are electrically conductive. The transmitter can be used in applications where a hygienic design is required.

The PD340 is the transducer of choice in industries where the highest standards in sanitation, hygiene, accuracy and reliability are of paramount importance. Industrial sectors ranging across the Dairy industry, Brewing Industry, Soft Drinks and Food, Animal Feeding, Potable Water, through to non-hygienic industries, where accurate measurement of a wide variety of conductive liquid chemicals is required.
The rugged construction of the transmitter also makes it suitable for installations where solid particles are present in the liquid.

Versatility

One reason for its evolved popularity is because the transmitter offers such a wide versatility of usage. In its simplest form, it can act purely as a standalone flow transducer producing volumetric pulses or a 4-20 mA flow rate signal.

However, as standard, it can also be utilised as a complete batch controller and even act as a limit switch for a number of direct or derived local measurements.

Revolutionary design

When PROCES-DATA released the first generation of the PD340 Flow Transmitter in the early eighties, it was nothing but a revolution on the sanitary flowmeter marketplace.

Before PD340, mechanical flowmeters, developed for non-hygienic applications, were commonly used to measure the flow of milk, beer, wine, and other liquids in the food industry. They were difficult to clean, a lot of maintenance was required to keep them in operation, and their life time was short.
The PD340 was the first flowmeter with no moving parts, developed especially with sanitary applications in dairies, breweries, and other food industry in mind.

Due to its unique, square-tube design, the PD340 was, and still is, the only meter on the market, which can be calibrated on water, and still maintain its high precision, even when measuring liquids with a different viscosity, without the need for being recalibrated on the actual liquid. Furthermore, the compact design, with metering head, electronics and terminal box for wiring connection in one integrated unit, makes installation fast and easy.

The PD340 is used in a variety of process applications within the food industry, such as in dairies, breweries, or fish processing industry, as well as on mobile tankers for collecting or distributing milk, beer, wine, animal feed, or chemicals, where the PD340 is the core component in approved metering systems.

Complete Flow Transmitters

Complete flow transmitters, which include both meterhead, electronics module, and terminal box, are listed below. They can be ordered by one single part number.
All relevant technical documentation, as well as can be found under each listed product.

PD340 C25, max. 8 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

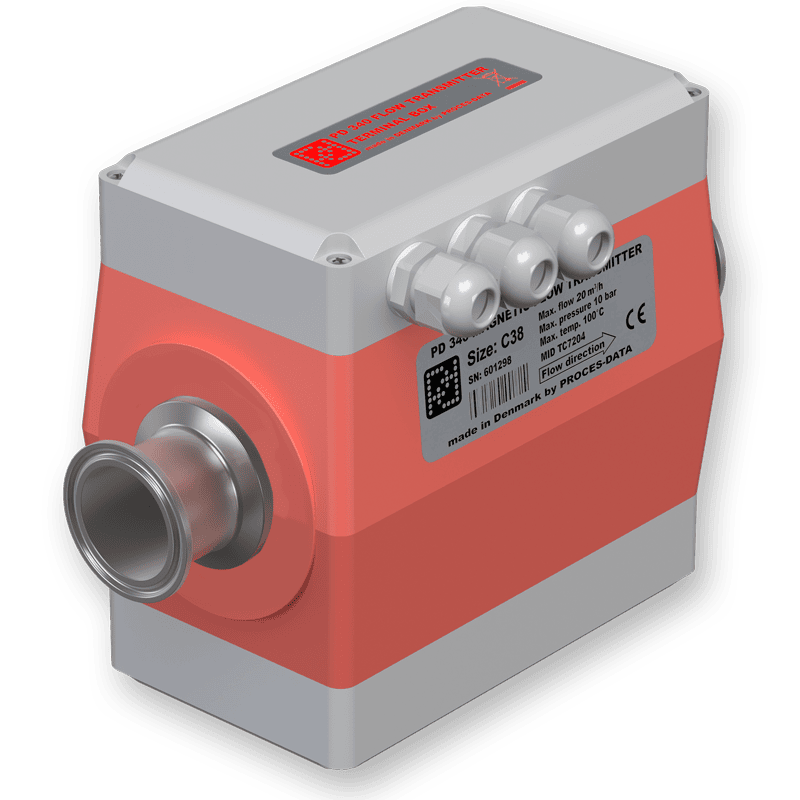

PD340 C38, max. 20 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

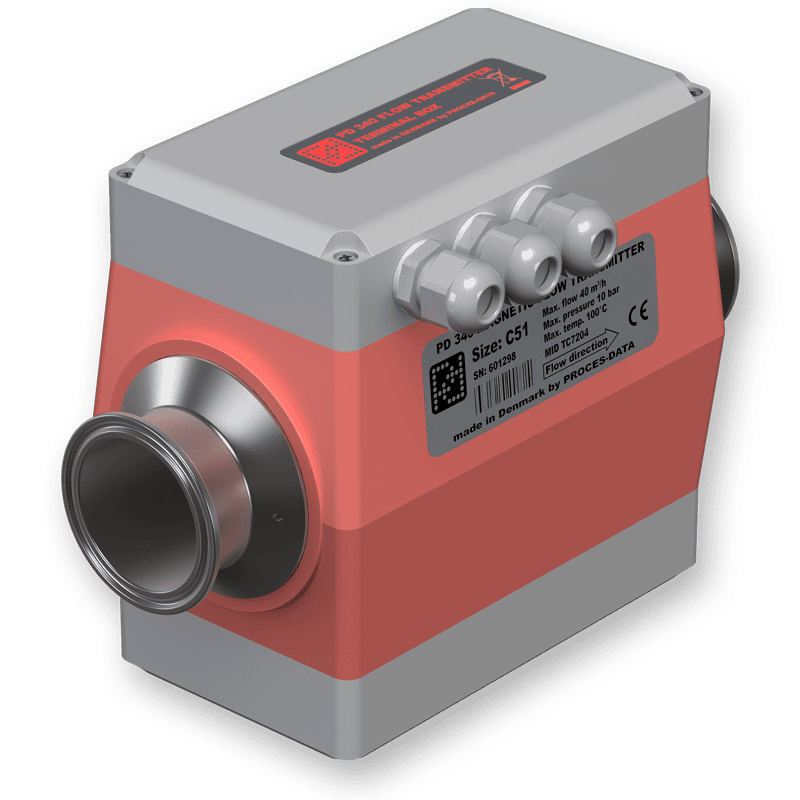

PD340 C51, max. 40 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

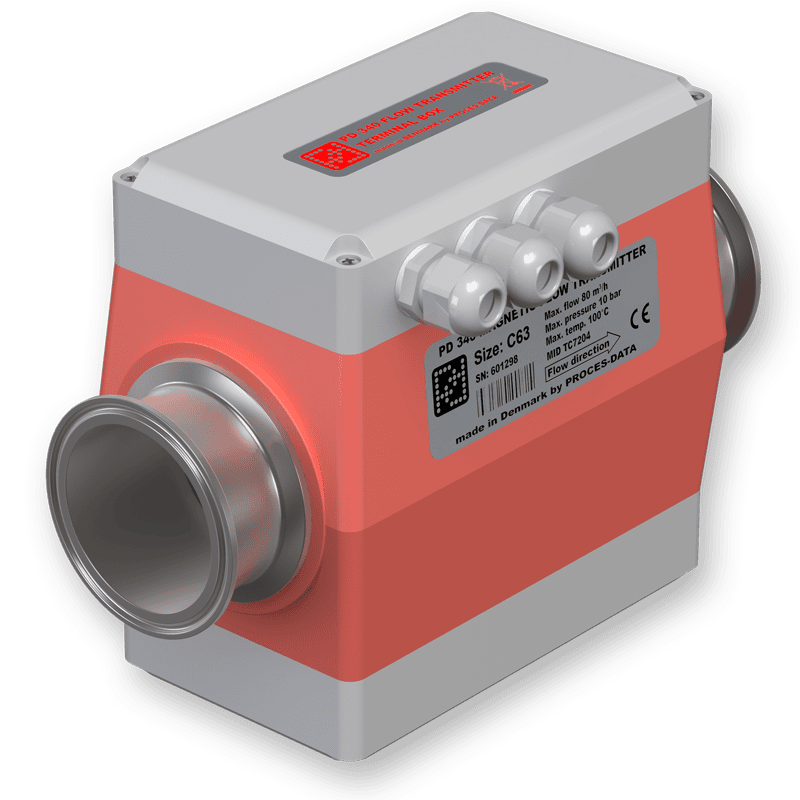

PD340 C63, max. 80 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

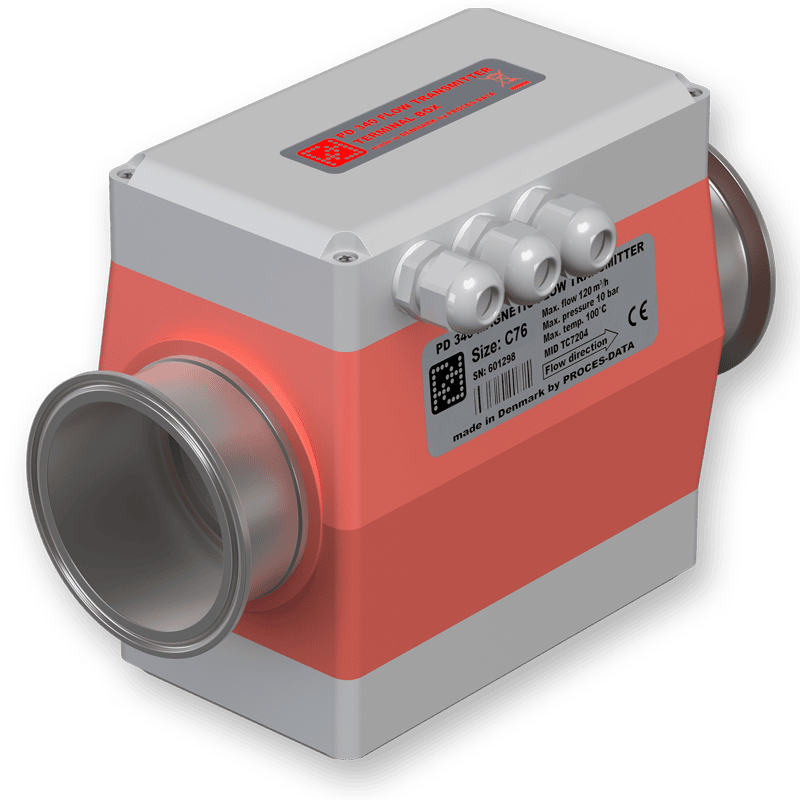

PD340 C76, max. 120 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

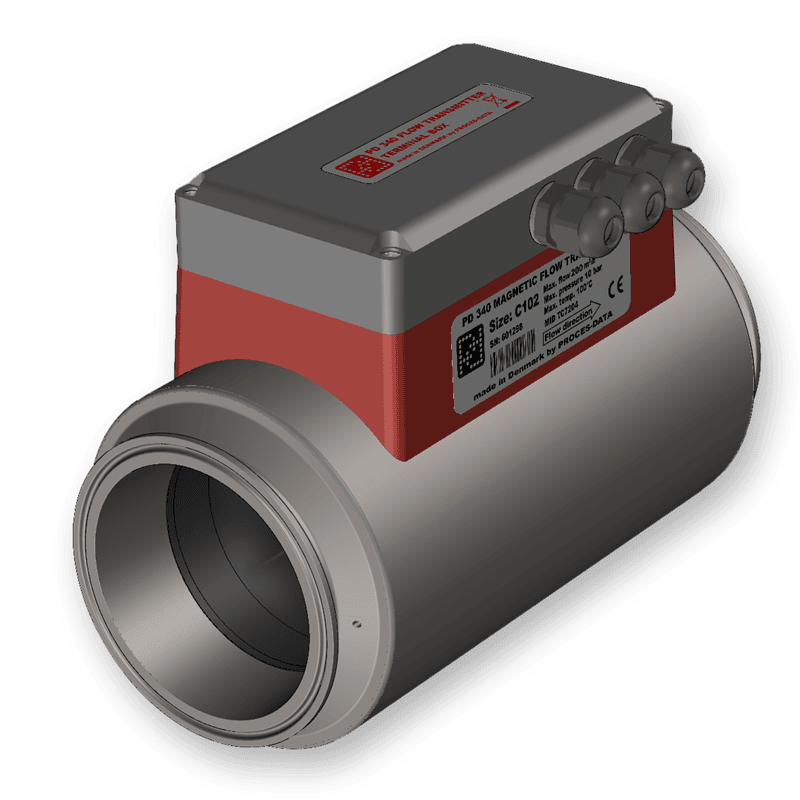

PD340 C102, max. 200 m³/h
Features • Suitable for sanitary applications – Designed especially for the food industry. • No moving parts – No maintenance....

Flow Transmitter Accessories

Products listed in the section below are accessories, which are often needed when ordering a complete flow transmitter.

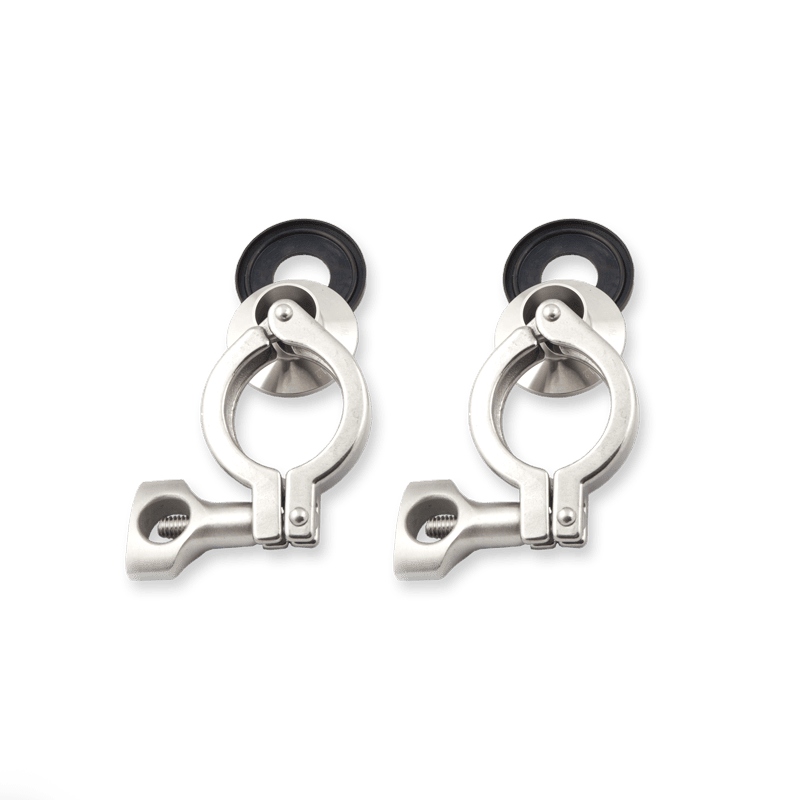

Clamp set C25
Set of clamp fittings C25
Clamp set C38
Set of clamp fittings C38
Clamp set C51
Set of clamp fittings C51
Clamp set C63
Set of clamp fittings C63
Clamp set C76
Set of clamp fittings C76
Clamp set C102
Set of clamp fittings C102

Flow Transmitter Spare Parts

This section lists available spare parts for the PD340 Flow Transmitter, such as electroincs modules, terminal boxes, printed circuit boads, and meterheads.

PD340 C25 Standard Electronic module
Electronic module for PD 340 C 25-0-000 – Standard Version
PD340 C25 Extended Electronic module
Electronic module for PD 340 C 25-1-000 – Extended Version
PD340 C25 3-phase output Electronic module
Electronic module for PD 340 C 25-1-132 – 3-phase output (mode 3)
PD340 C38 Standard Electronic module
Electronic module for PD 340 C 38-0-000 – Standard Version
PD340 C38 Extended Electronic module
Electronic module for PD 340 C 38-1-000 – Extended Version
PD340 C38 3-phase output Electronic module
Electronic module for PD 340 C 38-1-332 – 3-phase output (mode 3)
PD340 C51 Standard Electronic module
Electronic module for PD 340 C 51-0-000 - Standard Version
PD340 C51 Extended Electronic module
Electronic module for PD 340 C 51-1-000 - Extended Version
PD340 C51 3-phase output Electronic module
Electronic module for PD 340 C 51-1-532 – 3-phase output (mode 3)
PD340 C51 2-phase output Electronic module
Electronic module for PD 340 C 51-1-540 – 2-phase output (mode 2)
PD340 C63 Standard Electronic module
Electronic module for PD 340 C 63-0-000 – Standard Version
PD340 C63 Extended Electronic module
Electronic module for PD 340 C 63-1-000 – Extended Version
PD340 C63 3-phase output Electronic module
Electronic module for PD 340 C 63-1-732 – 3-phase output (mode 3)
PD340 C63 2-phase output Electronic module
Electronic module for PD 340 C 63-1-740 – 2-phase output (mode 2)
PD340 C76 Standard Electronic module
Electronic module for PD 340 C 76-0-750 – Standard Version
PD340 C76 Extended Electronic module
Electronic module for PD 340 C 76-1-750 – Extended Version
PD340 C76 3-phase output Electronic module
Electronic module for PD 340 C 76-1-752 – 3-phase output (mode 3)
PD381 Terminal box, complete
PD381 Terminal box, complete, for PD340

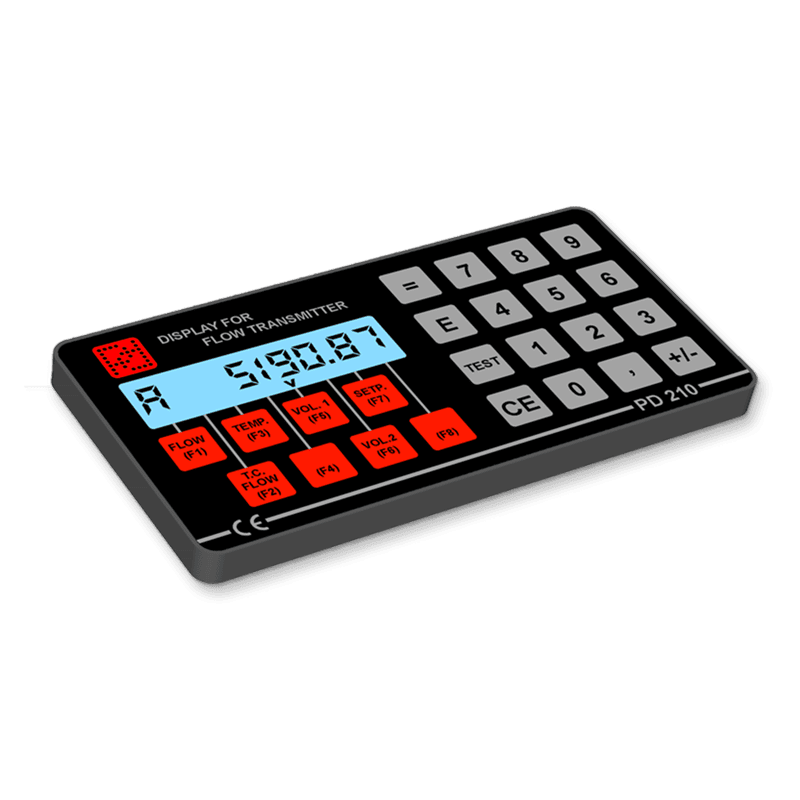

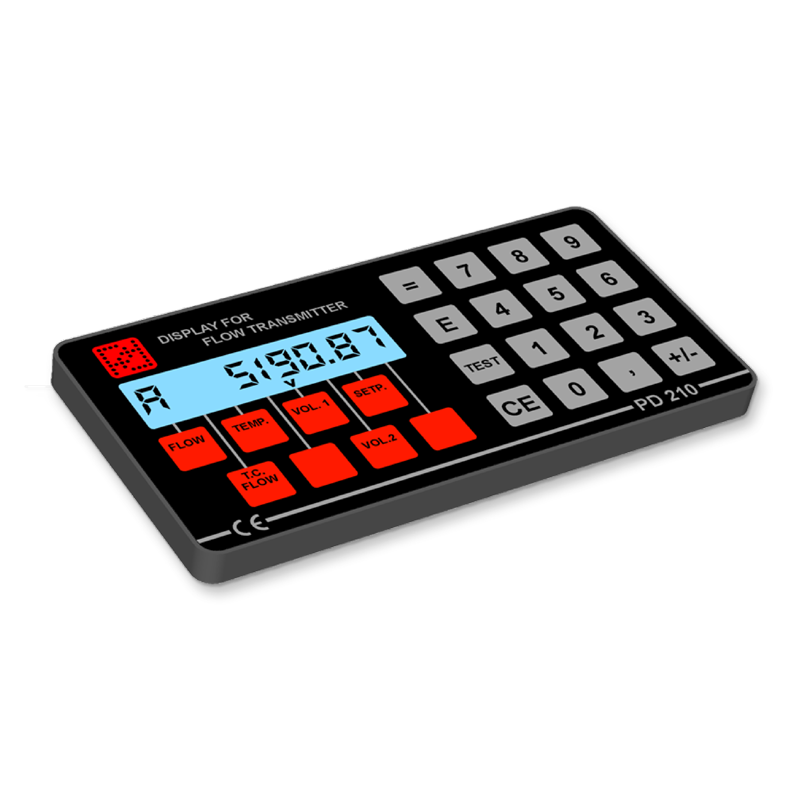

PD381 Terminal box, complete with PD210 Display Unit
PD381 Terminal box, complete with PD210 Display Unit, for PD340
PD384 Terminal box, complete
PD 384 Terminal box with heating element, complete, for PD 340
PD381 PC board only
PD 381 PC board for terminal box type PD 381

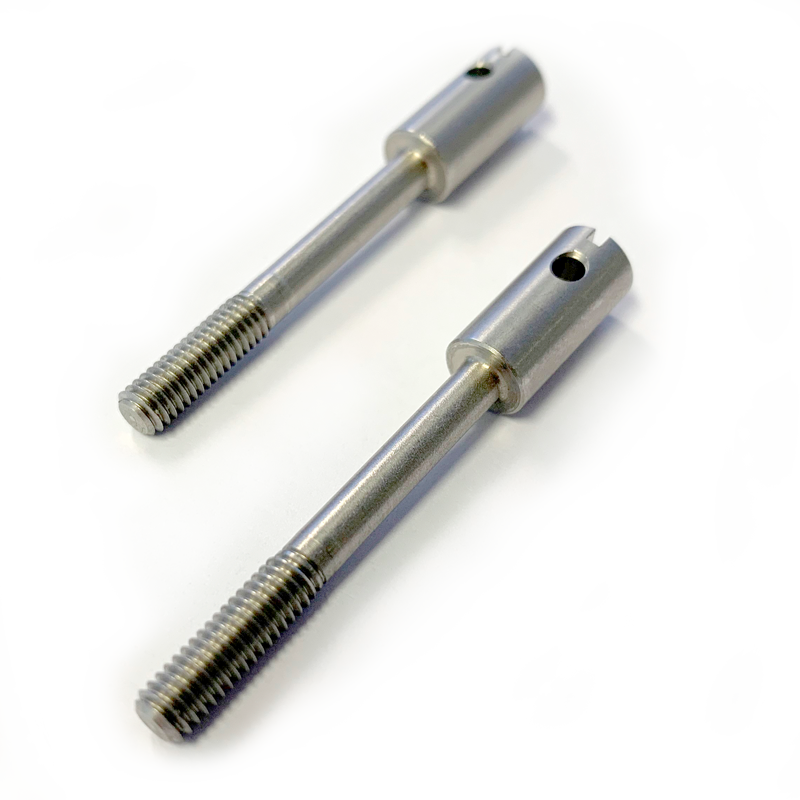

Flow Transmitter Extras

This section include products that can be used with the PD340 flow transmitter, for example in a developement project, or in special configurations.
