PD340 Terminal boxes

PD381 Terminal box, complete:
PD381 Terminal box, complete, for PD340



PD381 Terminal box, complete with PD210 Display Unit:
PD381 Terminal box, complete with PD210 Display Unit, for PD340



PD381 Terminal box, complete with 2 holes and cable glands:
PD381 Terminal box, complete with 2 holes and cable glands, for PD340



PD381 Terminal box, complete with 3 pcs hexagonal holes and without cable glands:
PD381 Terminal box, complete with 3 pcs hexagonal holes and without cable glands, for PD340



PD381 PC Board only:
PD381 PC board for terminal box type PD381



PD385 Terminal Box with Profibus DP:
PD385 Terminal box with Profibus DP
GSD file and documentation can be found under the downloads tab.



PD386 Terminal Box with PROFINET:
PD386 Terminal box with interface to PROFINET, Modbus TCP/IP og P-NET IP



Terminal box, without PD381, cover only
Terminal box, cover only, for PD340. Without PD381.



Terminal box, without PD381, holes and cables glads, cover only
Terminal box, cover only, for PD340. Without PD381, holes and cable glands

Loading...





PicturePart. No.NamePriceQuantity
600074kr. 725.00
600379kr. 3,975.00
600160kr. 725.00
900096kr. 725.00
601031kr. 525.00
600375kr. 2,050.00
900368kr. 2,830.00
600270kr. 225.00
600385kr. 210.00

PRODUCT DESCRIPTION

Note. All PD381 Terminal Boxes are completed with heating element.

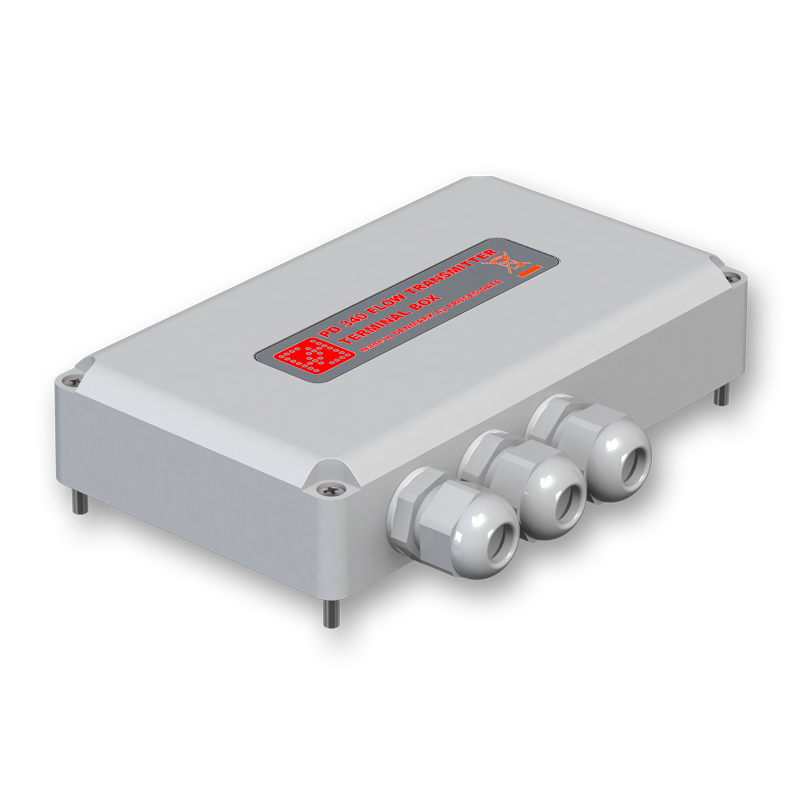

PD381 Terminal box, complete:
PD381 Terminal box, complete, for PD340



PD381 Terminal box, complete with PD210 Display Unit:
PD381 Terminal box, complete with PD210 Display Unit, for PD340



PD381 Terminal box, complete with 2 holes and cable glands:
PD381 Terminal box, complete with 2 holes and cable glands, for PD340

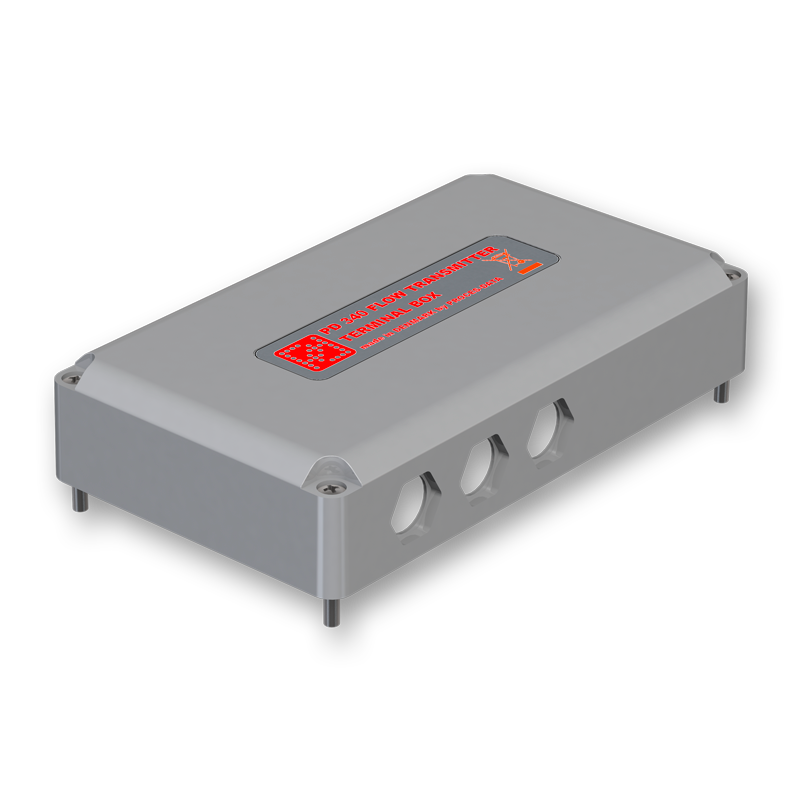

PD381 Terminal box, complete with 3 pcs hexagonal holes and without cable glands:
PD381 Terminal box, complete with 3 pcs hexagonal holes and without cable glands, for PD340



PD381 PC Board only:
PD381 PC board for terminal box type PD 381



PD385 Terminal Box with Profibus DP:
Profibus DP fieldbus interface makes measuring flow and volume as simple as measuring a temperature.
All data from the device is transferred to the PLC via Profibus DP. No analogue inputs or high speed counters are needed.



The PD385 Profibus interface module is universal for all PD340 meter sizes, ranging from C25 to C102 (1” to 4”).
The PD385 can be used with any extended version PD340, whether it is new or old.


Specifications:
Power Supply
Supply: 24 V DC
Power consumption: Max. 6 W
Status indicators: 3 x LED


Communication

Fieldbus: Profibus DP
Fieldbus profile: DP-V0
Maximum com. speed: 12 Mbps
(Automatic detection)
Address range: 1 to 125
GSD file name: PD__0D18.GSD


Environment

Ambient temperature: -10 °C to +50 °C
 Protection class: IP 67



PD386 Terminal Box with PROFINET:
PD386 Terminal box with interface to PROFINET, Modbus TCP/IP og P-NET IP



Terminal box, without PD381, cover only
Terminal box, cover only, for PD340. Without PD381.



Terminal box, without PD381, holes and cables glads, cover only
Terminal box, cover only, for PD340. Without PD381, holes and cable glands

PD386 Terminal Box with PROFINET:



DATASHEET:


MANUAL:




PD385:

Files and documentation:


GSD file:



PD386:

Files and documentation:


GSDML file:


JSON file:
