PD621

6 Individually Configurable Digital I/Os for nominal 24 volts signals and 1 amp (2 Amp) loads, Built in input and output functions

• Individually Configurable Digital I/Os for nominal 24 volts signals and 1 amp (2 Amp) loads.
• Built in input and output functions.
• Autonomous counting to 200 Hz
• Load current measurement
• Overload/Underload protection and Alarming.
• Advanced internal self testing.
• Wide power supply range.
• Wide temperature range.

Loading...

ORDERING

Picture Part. No. Name Price Quantity
600213 DKK 1,000.00
600191 DKK 350.00
600192 DKK 200.00
600193 DKK 200.00
701117 DKK 10.00
701139 DKK 15.00

Product Description

  • Individually Configurable Digital I/Os for nominal 24 volts signals and 1 amp (2 Amp) loads.
  • Built in input and output functions.
  • Autonomous counting to 200 Hz
  • Load current measurement
  • Overload/Underload protection and Alarming.
  • Advanced internal self testing.
  • Wide power supply range.
  • Wide temperature range.

APPLICATION

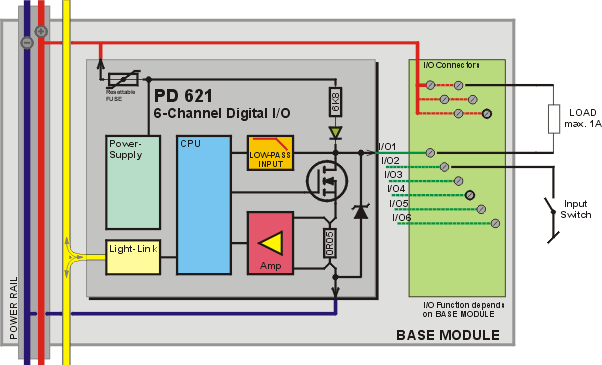

The PD 621 has six general-purpose digital channels, which are normally all configured for either input or output. When configured as an input device, the BM 005 Base Module is used. When configured as an output device, BM 006 is used. Alternatively, by configuring channels 1-4 as inputs and channels 5 and 6 as outputs, the latter can use the two built in relays in BM 004). All of these combinations provide easy-to-use DIN-rail mounting.

BM004

BM005

BM006
