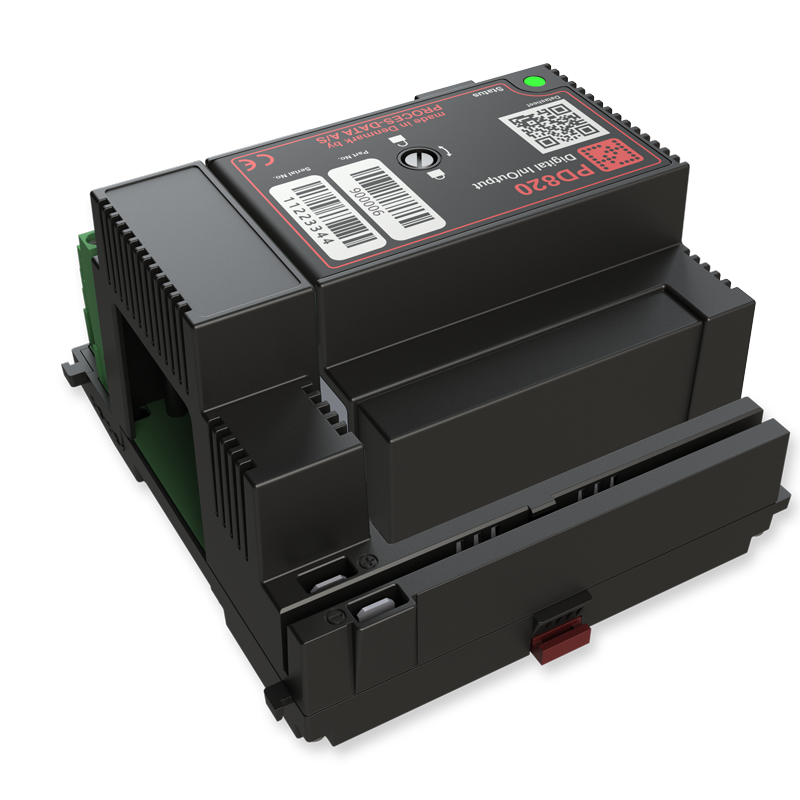

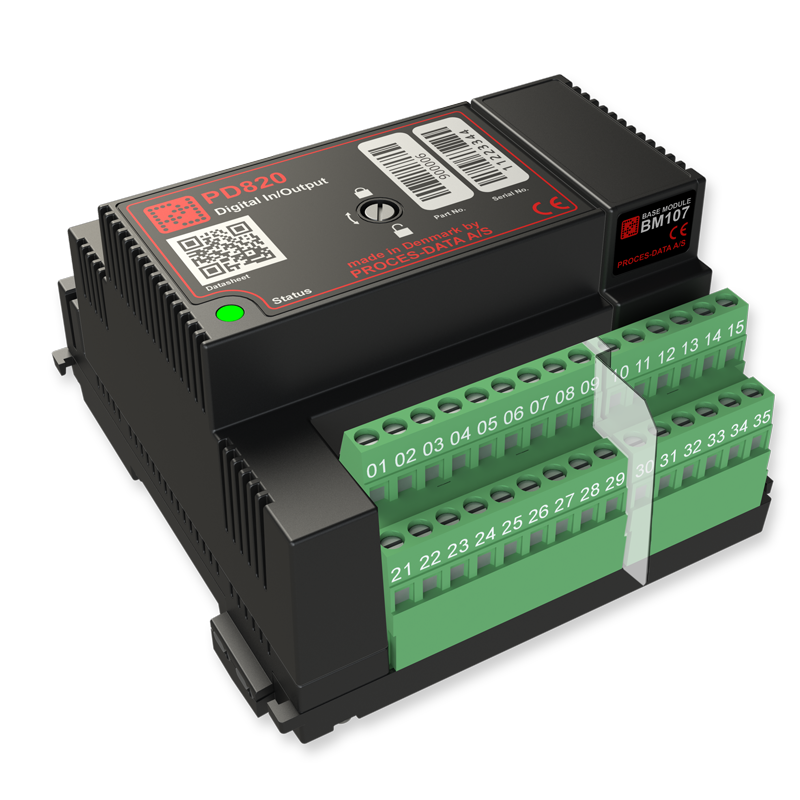

PD820

15 ch. Digital I/O, Push-pull output, Built-in input and output functions, P-NET via Light-Link, Programmable in COPP

• Digital Source or Sink I/Os for nominal 24 volt
• Push-pull output
• Programmable in COPP
• P-NET via Light-Link
• Built-in input and output functions
• Load current measurement
• Overload/Underload protection and Alarming
• Line Check
• Advanced internal self testing
• LED for power On and Error indication
• Wide Power Supply range
• Wide Temperature range
• Low Power Consumption

Loading...

ORDERING

Picture Part. No. Name Price Quantity
900006 DKK 1,300.00
900097 DKK 1,700.00
900116 DKK 2,100.00
900018 DKK 400.00
900020 DKK 800.00
701117 DKK 10.00
701139 DKK 15.00

PRODUCT DESCRIPTION

• Digital Source or Sink I/Os for nominal 24 volt
• Push-pull output
• Programmable in COPP
• P-NET via Light-Link
• Built-in input and output functions
• Load current measurement
• Overload/Underload protection and Alarming
• Line Check
• Advanced internal self testing
• LED for power On and Error indication
• Wide Power Supply range
• Wide Temperature range
• Low Power Consumption



APPLICATION

PD 820 is a device in the M100 series with digital I/O channels. The device offers 15 channels as interface for various types of process signals, valves, pumps, level detectors, actuators etc. and push-pull outputs for direct motor control.

The 15 channels consist of:
• 15 digital inputs/outputs, of which one channel can operate as fast digital input.

Digital inputs can be configured to perform Line Check.
The Line Check function can be used in relation to two-wire proximity switches. In case of error the hardware will report either ‘Line open’ or ‘Line short-circuited’ respectively.

The device is programmable in COPP, which means that a part of, or complete automation application can be built and downloaded by the user. The program can make use of ready-made
components to control and monitor any process or machine application, both locally in the device but also via the network interacting with other devices.

All output channels can source a positive voltage to external loads relative to the common negative supply voltage, or can sink current from the load to ground.
All channels are protected against overload and short-circuit and notification can be enabled on any disconnection or process failure.
The supply current for the device must be limited (with a fuse).
The total current for all outputs on the device is limited to 5 A.

The PD 820 can be used with the BM 104 base module.

PD 820 can alternatively be used with the BM 105 base module that also provides a separate terminal block for connections to relays. This will enable the PD 820 to use 9 digital inputs/outputs and 6 individual potential free relay outputs.

The device can be fixed to the base module by means of a screw.

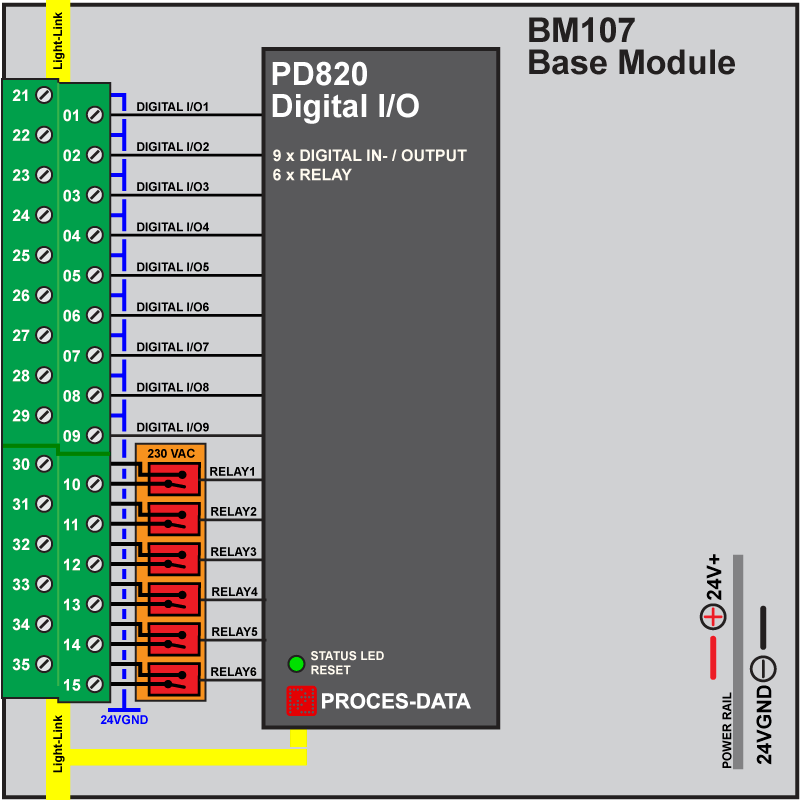

BASE MODULES SCHEMATICS

BM104

BM105
