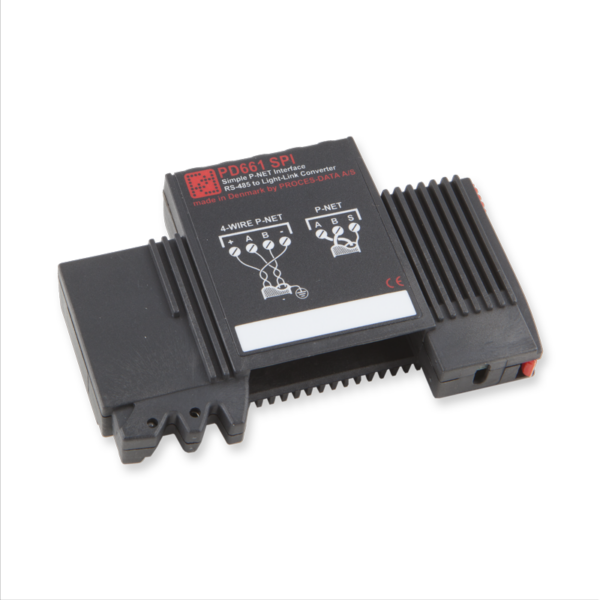

PD661

Simple P-NET Interface, RS-485 to Light-Link converter.
• Its main purpose is to provide a transparent link between standard RS485 P-NET and the optical Light-Link P-NET
• Performs a direct link between Light-Link and RS 485
• Provides a transparent link between Light-Link P-NET and 4-wire P-NET.
• No programming or configuration required.
• Advanced internal self testing
• Wide power supply range
• Wide temperature range

Loading...

ORDERING

Picture Part. No. Name Price Quantity
600242 DKK 500.00
900100 DKK 750.00
600197 DKK 250.00
600199 DKK 250.00
701117 DKK 10.00
701139 DKK 15.00

Product Description

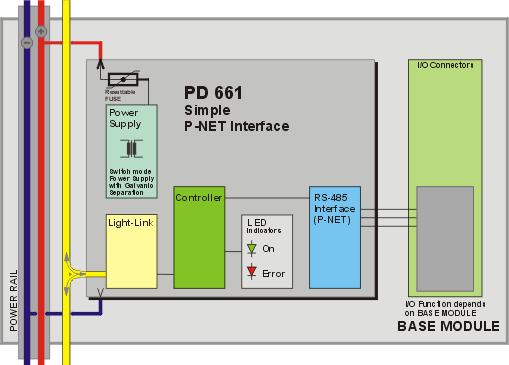

The PD 661 Simple P-NET Interface is one of a number of standard modules within the PD 600 series range. Its main purpose is to provide a transparent link between standard RS485 P-NET and the optical Light-Link P-NET used between other PD 600 series modules.
Furthermore, the PD 661 provides a transparent link between Light-Link P-NET and 4-wire P-NET.

The PD 661 is equipped with 2 LEDs, a green (On) to indicate that power is supplied to the module, and a red (Error) to indicate internal errors within the module. The Error LED is ON if an internal error occurs in the device.

The module itself does not require any programming or configuration. This module is normally used either when no DPI is included within a cluster of I/O modules and a connection is required with RS485 P-NET, or a DPI is included, but this has an interface with a standard other than RS 485. The PD 661 device performs a direct (repeater) link between an RS485 network segment and Light-Link, meaning that any modules included in the cluster will be regarded as part of that RS485 network. In other words, no gateway function is involved, as would be the case if the connection were made through a DPI. It is used with a BM 010 Base Module (standard RS 485 P-NET), or with a BM 012 Base Module (4-wire P-NET).

It should be noted, that the highest possible speed on Light-Link is 230400 BAUD, whereas the highest speed on RS 485 is 76800 BAUD. As the PD 661 device performs a direct link between Light-Link and RS 485, the highest possible speed is 76800 BAUD.



SPECIFICATIONS

Power supply
Power supply DC: Nom. 24.0 V, min. 18.0 V, max. 32.0 V
Ripple: max. 5%

Power consumption @ 24Vdc
Operation: 30 mA
Current at power up: 100 mA

Vibration approval
Standard: IEC 60068-2-6
Frequency range: 2-100 Hz
Frequency / amplitude: 2-10 Hz: +/- 5.0 mm, 10-100 Hz: +/- 2g
Sweep rate: Max. 1 octave/min.
Number of axes: 3 mutually perpendicular

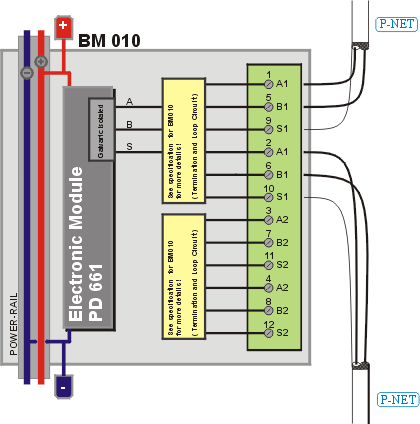

BM010

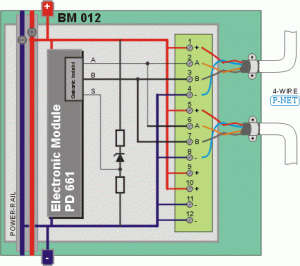

BM012
