PD622

• 6 Individually Configurable digital Inputs for nominal 24 volts signals.
• Built in input functions.
• Autonomous counting to 200 Hz
• Wide power supply range.
• Wide temperature range.

APPLICATION

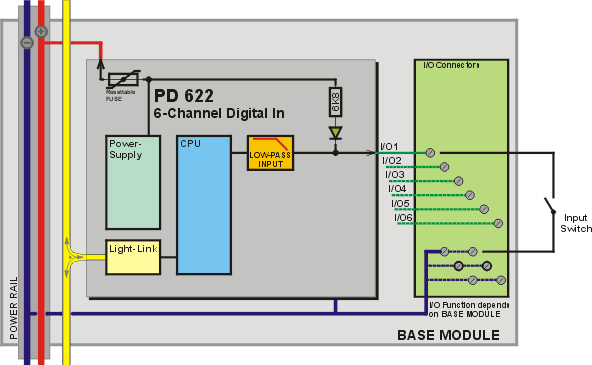

The PD 622 is designed as a 6 channel input only device. It provides facilities for standard detection and counting of input signals. It is used with a BM 005 Base module.

Power Specifications
Power Supply DC: nom. 24.0 V, min. 18.0 V, max. 32.0 V
Ripple: max. 5%

Power consumption @ 24VDC
All outputs/inputs = ON: max. 45 mA
All outputs/inputs = OFF : max. 30 mA
Current requirement at power up: max. 60 mA

Digital Input
Input voltage at ON: < 3 V
Input voltage at OFF: > 9 V
Input hysteresis:  min. 0.3 V
Input current at ON: max. 3.4 mA
Input frequency: max. 200 Hz

Environmental Conditions
Ambient Temperature
Operating temperature: -25 °C – 70 °C
Storage temperature: -40 °C – 85 °C

Humidity
Relative humidity: max. 95%

Approvals
EMC EN61000-6-2, EN61000-6-3

Vibration IEC 60068-2-6
Frequency range: 2-100 Hz
Frequency / amplitude: 2-10 Hz: +/- 5.0 mm
10-100 Hz: +/- 2g
Sweep rate: max. 1 octave/min
Number of axes: 3 mutually perpendicular
