PD641

Analogue Interface Module,  3-ch. input each of which can be configured for either Pt100 or Pt1000 sensor types

• Temperature input Pt100 or Pt1000
• All channels can be independently configured for either Pt100 or Pt1000 sensor types.
• The analogue input register shows the temperature in °C.
• Advanced internal self testing
• Wide power supply range
• Wide temperature range
• 2 LEDs for power On and Error indication



Loading...

ORDERING

Picture Part. No. Name Price Quantity
600233 DKK 1,000.00
600236 DKK 200.00
701117 DKK 10.00
701139 DKK 15.00

Product Description

APPLICATION

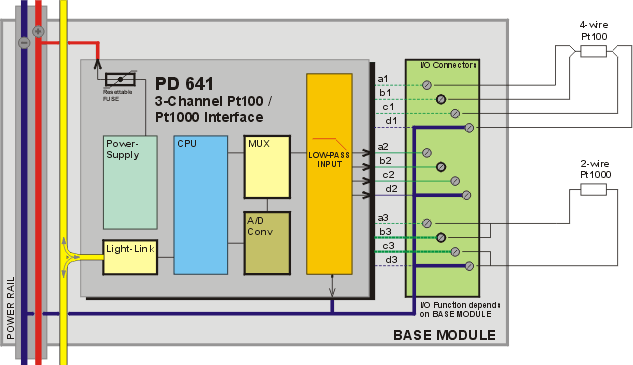

The PD 641 is an analogue input module with three temperature input channels, each of which can be configured for either Pt100 or Pt1000 sensor types.

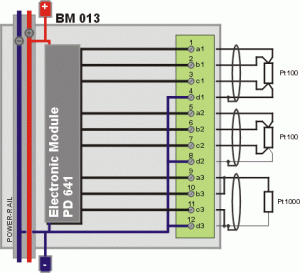

It is used with a BM 013 Base module.

SPECIFICATIONS
Power Specifications
Power Supply DC: nom. 24.0 V, min. 18.0 V, max. 32.0 V
Ripple: max. 5%

Power consumption @ 24V DC
Operation: max. 25 mA
Current at power up: max. 60 mA



Analogue input (Ch. 1 – 3)
Signal type: Pt100 / Pt1000
Connection: 4-wire / 2-wire
Update time: Fixed 2.4 s
Input temperature range: Pt100 -100 °C → +600 °C, Pt1000 -100 °C → +200 °C
Ambient temperature coefficient Tc: max. ± 15 ppm / °C
Ambient temperature influence (ΔT): Tc x (Tambient – 20) x (Tsensor + 273)

Pt-100 Data (excluding sensor)
Calibration error: @ Tamb. 20 °C max. ± 0.1 °C
Resolution: typ. 0.05 °C
Measuring current: max. 500 µA

Pt-1000 Data (excluding sensor)
Calibration error: @ Tamb. 20 °C max. ± 0.2 °C
Resolution: typ. 0.2 °C
Measuring current: max. 50 µA

Filter for analogue input signal
Type: 4th order low pass
Time constant: configurable 3.0 s – 50.0 s
Gain error: max. ± 0.1 %

Environmental Conditions
Ambient Temperature
Operating temperature: -25 °C – 70 °C
Storage temperature: -40 °C – 85 °C

Humidity
Relative humidity: max. 95%

Approvals
EMC EN61000-6-2, EN61000-6-3

Vibration IEC 60068-2-6
Frequency range: 2-100 Hz
Frequency / amplitude: 2-10 Hz: +/- 5.0 mm
10-100 Hz: +/- 2g
Sweep rate: max. 1 octave/min
Number of axes: 3 mutually perpendicular
