PD804

Distributed Process Intelligence type, P-NET via Light-Link, RS-485, Dual 100 Mbit Ethernet, USB Interface, 4G LTE, GPS.



• Process Automation Controller
• Programmable in COPP
• P-NET via Light-Link, RS-485 and Ethernet
• Dual 100 Mbit Ethernet switch
• USB Interface
• 4G LTE and GPS
• 256 MByte RAM, 16 MByte Flash, 32 kByte MRAM
• Battery Backup
• Micro SD-Card slot
• 4G Modem with 2 female SMA connectors
• High sensitivity GPS receiver with SMA connector
• Wide Temperature range
• Wide Power Supply range
• Low Power Consumption

Loading...

ORDERING

PicturePart. No.NamePriceQuantity
900232DKK 9,300.00
900234DKK 9,700.00
900016DKK 400.00
900235DKK 175.00
900201DKK 2,850.00
701117DKK 14.00
701139DKK 18.00

PRODUCT DESCRIPTION

  • Process Automation Controller
  • Programmable in COPP
  • P-NET via Light-Link, RS-485 and Ethernet
  • Dual 100 Mbit Ethernet switch
  • USB Interface
  • 4G LTE and GPS
  • 256 MByte RAM, 16 MByte Flash, 32 kByte MRAM
  • Battery Backup
  • Micro SD-Card slot
  • 4G Modem with 2 female SMA connectors
  • High sensitivity GPS receiver with SMA connector
  • Wide Temperature range
  • Wide Power Supply range
  • Low Power Consumption



APPLICATION
A PD804 DPI is used to provide programmable intelligence for the local cluster via various communication interfaces:
P-NET Light-Link, P-NET RS-485 and two Ethernet ports using P-NET via UDP.



The device is programmable in COPP, which means that a part of, or complete automation application can be built and downloaded by the user. The program can make use of ready-made components to control and monitor any process or machine application, both locally in the device but also via the network interacting with other devices.



The PD804 is equipped with a GPS interface and a 4G modem.



The GPS Navigation Receiver has been designed to provide GPS information similar to the general-purpose P-NET GPS Navigation Receiver PD947.



The GPS interface in PD804 features a high-quality GPS receiver with superior sensitivity and performance.
The GPS connected to an external antenna is giving a high sensitivity GPS receiver for fast and accurate positioning that can track up to 22 satellites on 66 channels.



The modem is a global 4G modem that supports 4G/3G/2G network and data communication. Using the modem, the PD804 can establish P-NET communication. All P-NET data communication to and from the PD804 is encrypted and authenticated.



The modem in PD804 COPP DPI  is a LTE/GPRS/EDGE/UMTS/HSPA+ that supports LTE(4G)/UMTS(3G)/GSM(2G) networks with global coverage. The device contains 2 SMA female connectors to support dual antennas for 4G if necessary.



As well as P-NET communication, the PD804 is able to send and receive SMS messages.



Ethernet interfaces, 4G/3G modem, and GPS receiver are optional for DPI devices in the PD800 series. PD804 is a fully-features device with all options included.



PD804 is used with the BM103 base module that provides the power supply connection and connection for all the communication interfaces.



The device can be locked to the base module by means of a screw.

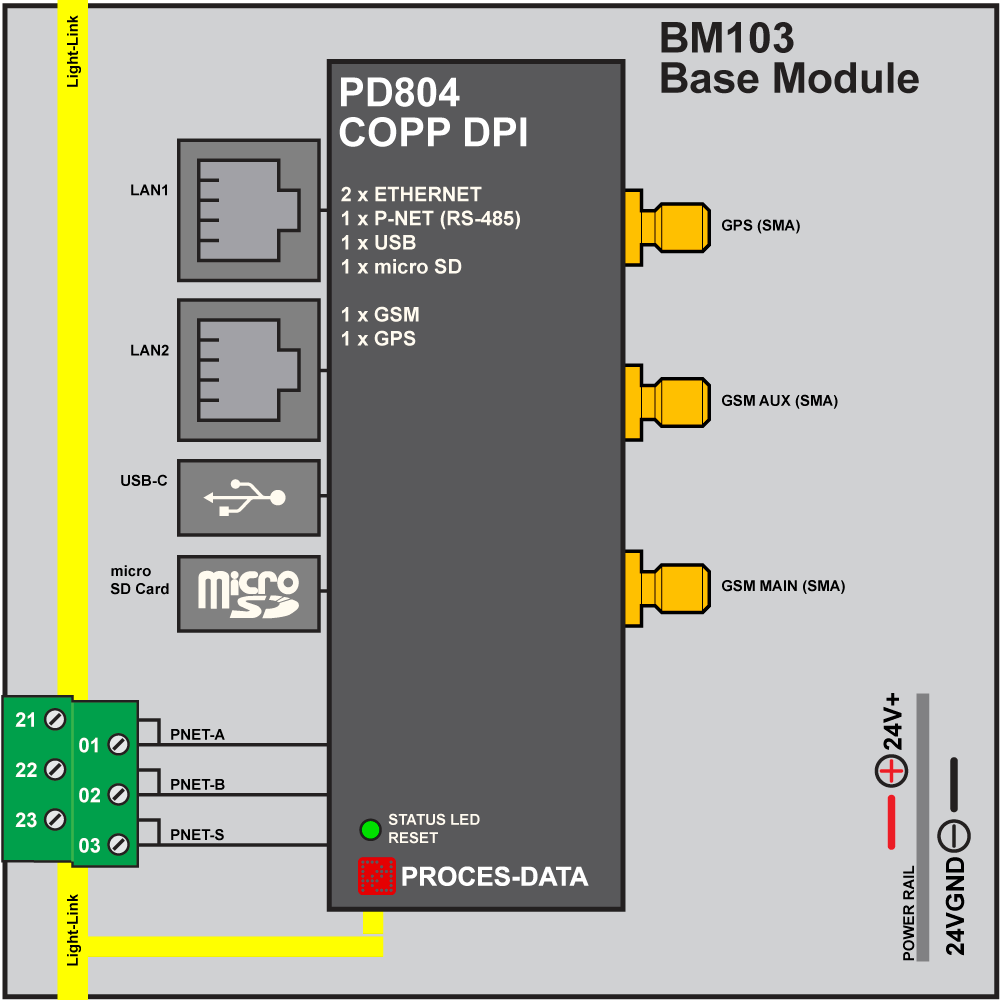

BASE MODULES SCHEMATICS

BM103
