PD602

Distributed Process Intelligence type, PD 602,  P-NET via Light Link, Ethernet LAN Interface

• Real time clock with battery backup.
• 64 – 1024 Kbytes in circuit programmable FLASH memory for user program.
• 128 – 2048 Kbytes in circuit programmable FLASH memory for user data.
• 64  – 992 Kbytes RAM memory with battery backup for user data. (2 Kbytes of RAM reserved for system variables)
• Built-in replaceable lithium battery.
• LED state indicators.
• Low power consumption.
• Process-Pascal programmable.
• Automatic checksum control of program memory after each Reset.
• EMC approved (89/336/EEC).

Loading...

ORDERING

PicturePart. No.NamePriceQuantity
600225DKK 3,740.00
600210DKK 6,050.00
600211DKK 9,350.00
600239DKK 210.00
701117DKK 14.00
701139DKK 18.00

Product Description

  • Real time clock with battery backup.
  • 64 – 1024 Kbytes in circuit programmable FLASH memory for user program.
  • 128 – 2048 Kbytes in circuit programmable FLASH memory for user data.
  • 64  – 976 Kbytes RAM memory with battery backup for user data. (2 Kbytes of RAM reserved for system variables)
  • Built-in replaceable lithium battery.
  • LED state indicators.
  • Low power consumption.
  • Process-Pascal programmable.
  • Automatic checksum control of program memory after each Reset.
  • EMC approved (89/336/EEC).


APPLICATION

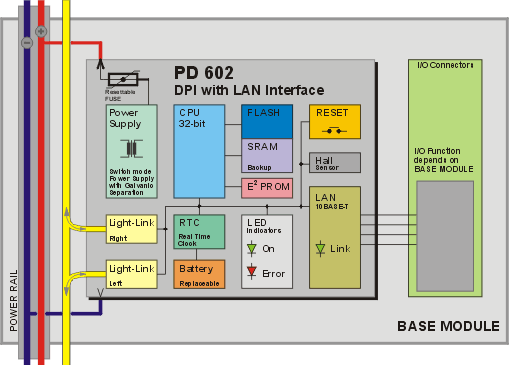

A PD 602 DPI is used to provide programmable intelligence for the local cluster via Light-Link P-NET, and to provide an interface with local area networks (LAN) using the Ethernet electrical standard (10 Mb/s). The BM 016 Base module is recommended for this device.

The PD 602 DPI is programmed in Process-Pascal, which is an extension of standard Pascal, allowing easy declaration and utilisation of P-NET variables and objects. Programs are developed and compiled on a standard PC, then downloaded directly via a P-NET interface. Program code can be downloaded to FLASH memory.


SPECIFICATIONS

Communication
The PD 602 DPI has 2 standard P-NET Communication Channels.
Channel 1 is a P-NET Ethernet communication channel for connecting the DPI to a LAN.
Channel 2 is a P-NET Light-Link communication channel intended for communicating with other locally mounted P-NET devices using the optical Light-Link interface.


Memory

Program FLASH: 64 – 1024 Kbytes
Data FLASH: 128 – 2048 Kbytes
RAM 64 – 976 Kbytes


Power Specifications
Power Supply DC: nom. 24.0 V
min. 15.0 V
max. 32.0 V
Ripple: max. 5 %
Power consumption @ 24 VDC
Operating: max. 50 mA
Current at power up: max. 100 mA
Battery Backup (RAM and RTC)
Replaceable battery (Panasonic) BR1632
Replace battery every 5 years.
If the operating ambient temperature is over 50 °C,
replace battery more frequently.
Backup time @ 25 °C typ. 1 year


Environmental Conditions
Ambient Temperature
Operating temperature: -25 °C – 70 °C
Storage temperature: -40 °C – 85 °C
Humidity
Relative humidity: max. 95%


Real Time Clock
Accuracy: Deviation is approx. 3 minutes per month over the full
temperature range.
Deviation is approx. 1 minute per month at 25 °C


Approvals

EMC EN61000-6-2, EN61000-6-3
Vibration IEC 60068-2-6
Frequency range: 2-100 Hz
Frequency / amplitude: 2-10 Hz: +/- 5.0 mm
10-100 Hz: +/- 2g
Sweep rate: max. 1 octave/min
Number of axes: 3 mutually perpendicular


Mounting requirements

The PD 602 DPI must be mounted in a metal enclosure/panel.

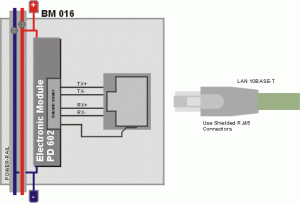

BM016
