Loop antenna for PD951 RFID Reader

Loop antenna for PD951 RFID Reader Ø175mm:
This antenna is designed to be used with the PD 951 RFID Reader and has the required inductance.

Loading...

ORDERING

PicturePart. No.NamePriceQuantity
600266kr. 450.00

PRODUCT DESCRIPTION

Loop antenna for PD951 RFID Reader Ø175mm:
This antenna is designed to be used with the PD 951 RFID Reader and has the required inductance.



Inductance: ……………………………………………….. 208 µH +/- 5%
Operating frequency: ………………………… 125 kHz / 134.2 kHz
Cable length from antenna to PD 951: ……….. max. 10 meters



The maximum field strength from this loop antenna, when used with the PD 951, is:
Electric field @ 300 m (NCC LP0002):
1.7 µV/m, equivalent to 4.6 dBµV/m (dBu).
(Below limit of 17.9 dBµV/m (dBu) @ 134 kHz)



Magnetic field @ 10 m (ETSI EN 300 330 V2.1.1):
121 µA/m = 41.7 dBµA/m
(Below limit of 66 dBµA/m)

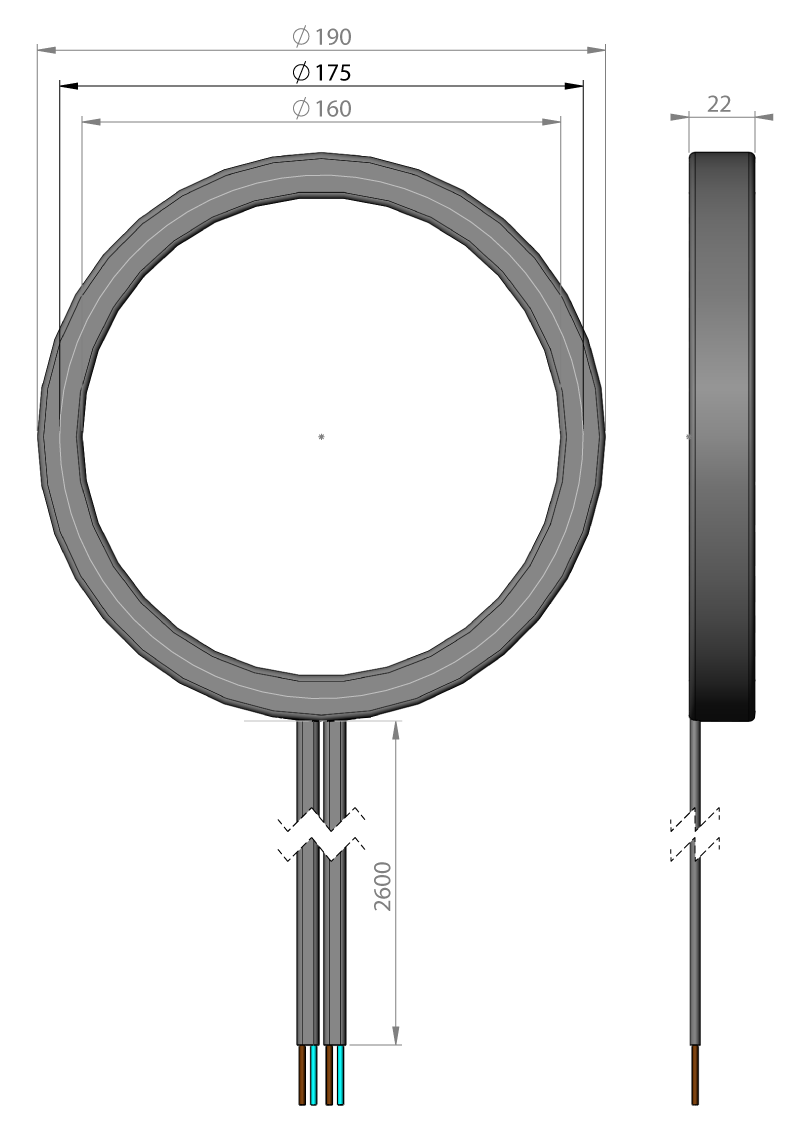

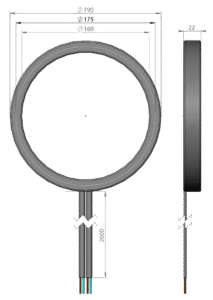

Mechanical Specifications
Dimensions (HxWxD)…………………………………..Ø 190 x 22 mm
Weight approx………………………………………………………… 405 g
