BM104 BASE MODULE
Base Module, BM 104, screw terminals.
PD 800 series DPIs and I/O devices are made up of two parts: The Terminal Base Module and the Electronics Device.
The Terminal Base Modules are snap-locked directly on a DIN-Rail and interlocks with neighboring modules to ensure stability.

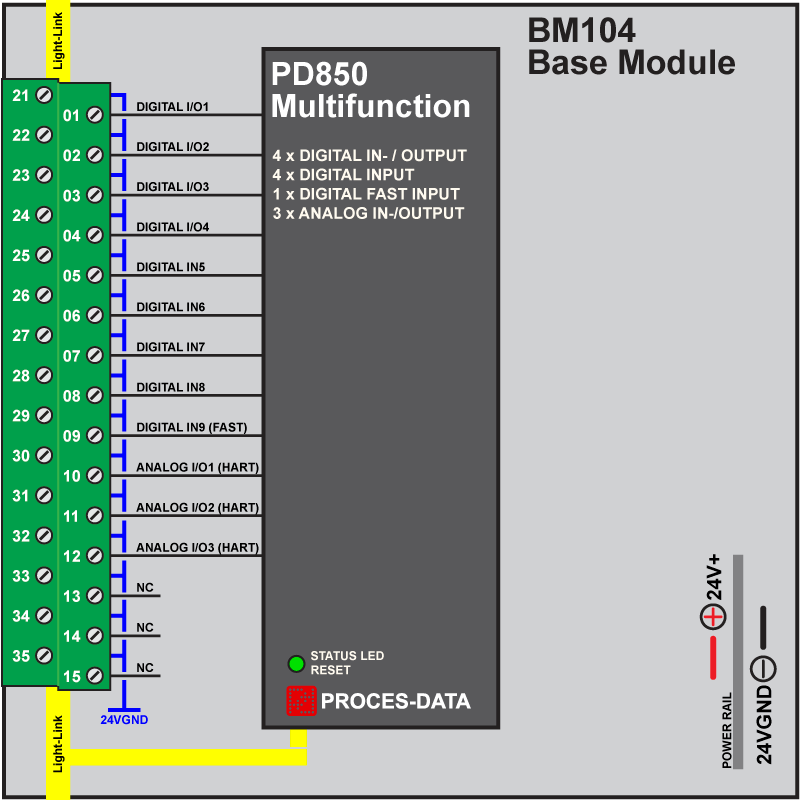

The Terminal Base Module has two terminals for all the channels for connection to the process signals, respecting the demand for only one wire in each terminal, ensuring a safe and straight forward design- and installation process. One of the two terminals is with the negative supply and the other is the input / output terminal. Having only one wire in each terminal enables that the wiring to/from process signals can be done directly, without the need for any further intermediate terminals.
The Terminal Base provides also a power rail for connections to the power supply, as well as guides for the Light-Link interface.
Current supplied by power rail Max. 5 A
Current at spade connectors Max. 10 A
BASE MODULE BM 104
Several I/O devices in the M100 series uses a BM 104 that provides terminals for all I/O connections and power supply, as well as guides for the Light-Link interface.
The base module is available with either spring terminals or screw terminals.
